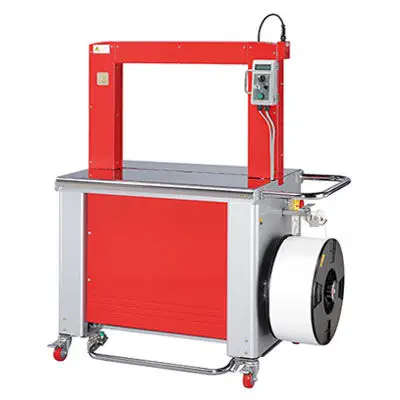

TP‑702 Mercury Strapping
The TP-702 Mercury is a high-speed, fully automatic strapping machine designed for demanding packaging and bundling applications. It supports various strap widths, offers adjustable tension, and delivers up to 65 straps per minute for maximum productivity. With automatic strap feeding, quick coil change, and multiple activation options, the Mercury provides fast, reliable, and consistent strapping performance ideal for warehouses, print shops, logistics centers, and production lines.
Brand
Transpak
Models
Product Specification
TP‑702 Mercury Strapping
| Operation Mode | Fully automatic polypropylene strapping |
| Supported Strap Widths | 5 mm, 6 mm, 9 mm, 12 mm (15 mm available in some variants) |
| Tension Range | 1–32 kg (5–9 mm straps) / 1–45 kg (12 mm straps) |
| Strapping Speed | Up to 65 straps per minute (5–9 mm version) / approx. 60 straps per minute (12 mm version) |
| Machine Weight | Approx. 158 kg (5–9 mm version) / approx. 167 kg (12 mm version) |
| Table Height (Adjustable) | Approx. 820–920 mm (optional version: 770–820 mm) |
| Cycle Start Options | Photo-eye sensor, foot-bar switch, foot pedal, or manual start |
| Strap Handling Features | Automatic strap feeding, auto strap ejector, strap-end ejector, easy coil change, controlled heater for consistent sealing |
| Control Panel | User-friendly control panel (rotatable in some configurations) |
| Suitable Package Types | General packages, bundles, and products requiring PP strapping in high-speed environments |
